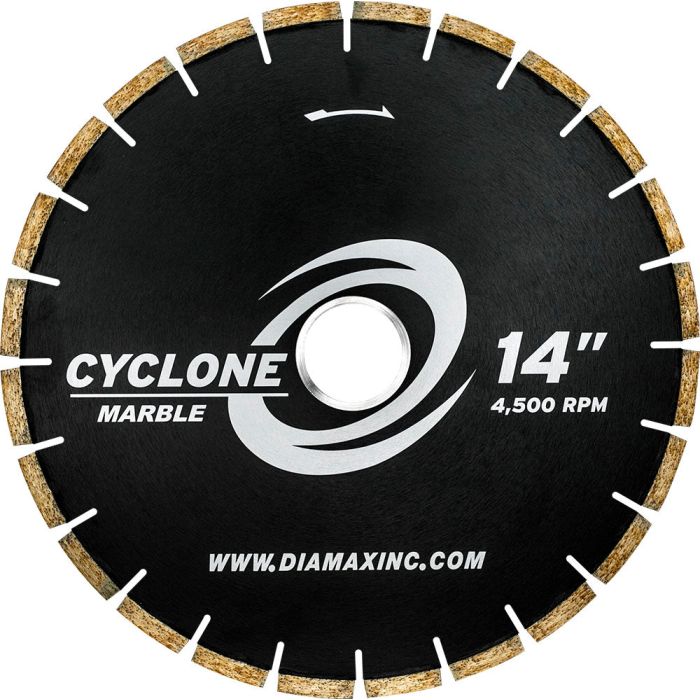

Diamax Cyclone Marble Silent Core Bridge Saw Blade – 14" & 16"

The Diamax Cyclone Marble Silent Core is a dedicated bridge saw blade engineered specifically for clean, controlled cutting of marble. Instead of using a general-purpose stone bond, Diamax developed this blade around the characteristics of marble, using a higher concentration of smaller-grit diamonds to help reduce edge chipping and produce a smoother finished cut.

The blade is designed for both straight and miter cutting, making it a strong choice for countertop fabrication, vanities, architectural stone, and other marble applications where edge quality matters. Its silent-core construction also helps reduce cutting noise while maintaining the stability needed for accurate bridge saw work.

Available in 14" and 16" sizes, both versions use a 10 mm medium-bond segment and a 50/60 mm arbor. The 14" blade is designed to run at approximately 2,000 RPM, while the 16" version is designed for approximately 1,800 RPM.

For fabrication shops that regularly cut marble, the Cyclone Marble offers a more refined cutting action than a standard granite or multi-material blade. The result is better edge control, cleaner miters, and a blade that is actually matched to the material being processed.

Key Features

Marble-Specific Diamond Bond

The Cyclone Marble uses a bond developed specifically for marble fabrication rather than a general-purpose stone formulation.

High Diamond Concentration

A higher concentration of smaller-grit diamonds creates a finer cutting action designed to reduce chipping and improve finished edge quality.

Clean Straight Cuts

Built to produce smooth, controlled straight cuts in marble slabs while minimizing edge damage.

Strong Miter Performance

The blade is designed to maintain clean, accurate edges during miter cutting, making it well suited for waterfall edges and other detailed fabrication work.

Silent Core Construction

The silent core reduces cutting noise while maintaining the rigidity and stability needed for precise bridge saw operation.

Wet Cutting Only

The Cyclone Marble is designed for wet cutting. Proper water flow helps cool the blade, control slurry, and preserve cutting performance and edge quality.

Recommended Material

• Marble

This is a dedicated marble blade. For granite, engineered quartz, quartzite, porcelain, or Dekton, use a blade designed specifically for those materials.

Product Specifications

14" Cyclone Marble – CSCM14

Diameter: 14"
Segment Height: 10 mm
Bond: Medium
Arbor: 50/60 mm
Recommended RPM: Approximately 2,000 RPM
Cutting Method: Wet Only

16" Cyclone Marble – CSCM16

Diameter: 16"
Segment Height: 10 mm
Bond: Medium
Arbor: 50/60 mm
Recommended RPM: Approximately 1,800 RPM
Cutting Method: Wet Only

Getting the Best Performance from the Cyclone Marble

Run the blade at the recommended RPM for its diameter and use plenty of clean water on both sides of the cut. Proper water delivery helps keep the blade cool and reduces the chance of edge damage during both straight and miter cutting.

Use a steady feed rate rather than forcing the blade through the material. Marble responds best to a controlled cutting action, especially when finished edge quality is important.

Keep the blade properly aligned and the saw table level before starting detailed miter work. Good machine setup will help the silent core maintain a clean, consistent cutting path.

For best results, keep this blade dedicated to marble rather than switching it between harder materials. Using a blade with the correct bond for the material generally improves both cut quality and blade life.
